Autodok® H Series Hydraulic Leveler
Pit Style Hydraulic Dock Leveler

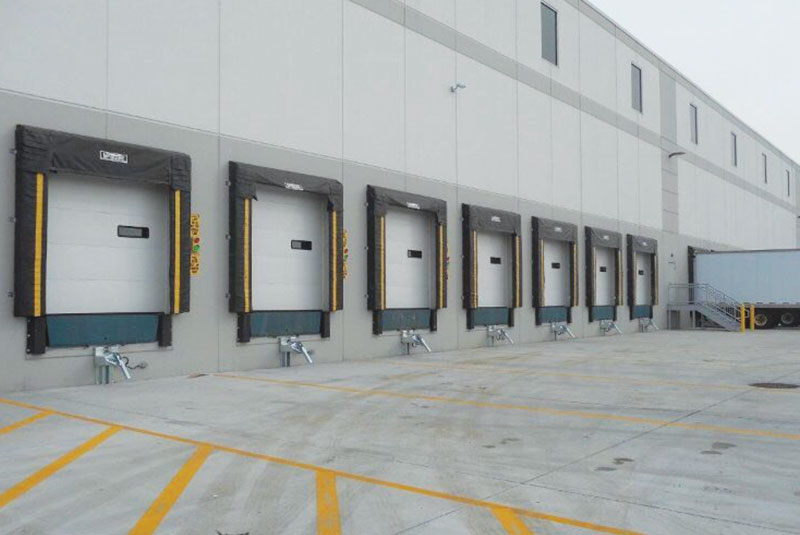

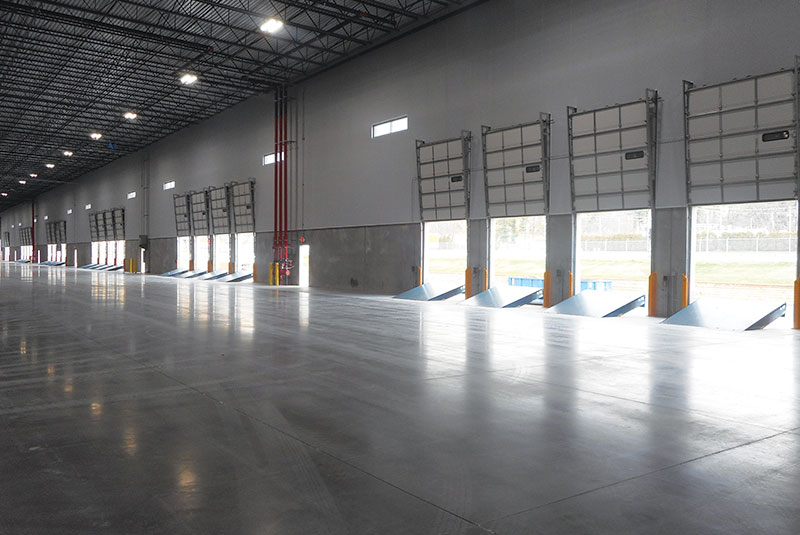

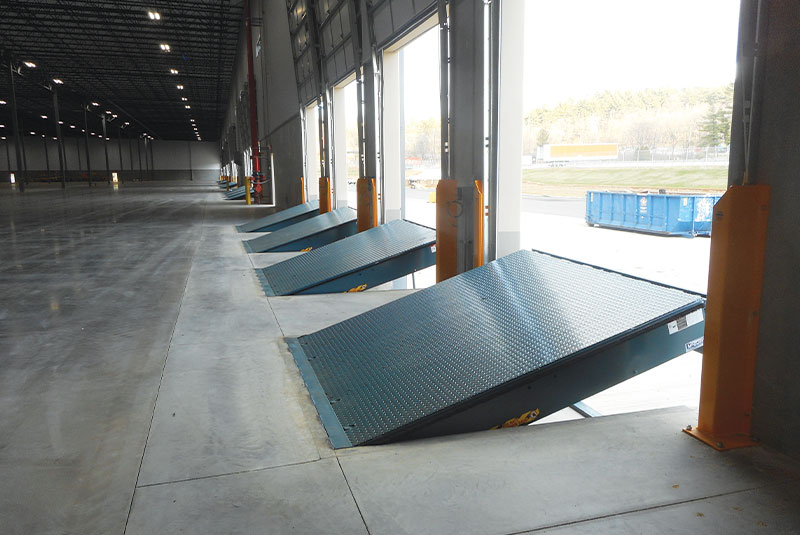

The “H” Series hydraulic dock leveler is structurally designed for the most demanding applications with easy push button convenience for smooth, consistent operation plus outstanding toughness and dependability in your most challenging dock operations. McGuire offers a hydraulic dock leveler to meet any of your dock equipment needs while providing low lifetime ownership costs and years of trouble free service with the industry’s best built-in safety. They are most often mounted in a pre-formed pit at the dock commonly used to reduce the grade between the dock floor and the trailer bed. Various sizes and capacities allow for a large amount of flexibility. Hydraulic levelers have added safety features and save time in operation and maintenance.
The H Series comes in 6’, 6’6” & 7’ standard widths and 6’, 8’ & 10’ standard lengths with 12’ and other lengths available. Standard capacities for the “H” Series are 45K, 55K, 75K and 100K CIR (Comparative Industry Rating).
Available with
SPECIFICATIONS
| MODEL | NOMINAL SIZE |
|---|---|
| H-66 | 6' x 6' |
| H-68 | 6' x 8' |
| H-610 | 6' x 10' |
| H-612 | 6' x 12' |
| H-656 | 6'6" x 6' |
| H-658 | 6'6" x 8' |
| H-6510 | 6'6" x 10' |
| H-6512 | 6'6" x 12' |
| H-76 | 7' x 6' |
| H-78 | 7' x 8' |
| H-710 | 7' x 10' |
| H-712 | 7' x 12' |
| CAPACITY - COMPARATIVE INDUSTRY RATING (CIR) |
|---|
| 45,000 LBS. CIR |
| 55,000 LBS. CIR |
| 75,000 LBS. CIR |
| 100,000 LBS. CIR |
PRODUCT DOCUMENTS
- AutoDok H Brochure
- Autodok H Spec Sheet
- HP, H Owner's Manual
- H/HP Series Check Sheet
- McGuire Hydraulic Levelers Pit Detail.pdf
- Total Site Survey
- Leveler Grade Chart
- Spanish Total Site Survey
- 3-Sided Box / Leveler Installation
- 4-Sided Box / Leveler Installation
- Preventative Maintenance Program
- McGuire Line Card
- Hydraulic Dock Leveler PM Checklist
- Spanish AutoDok H Brochure
- Spanish McGuire Full Product Overview
-

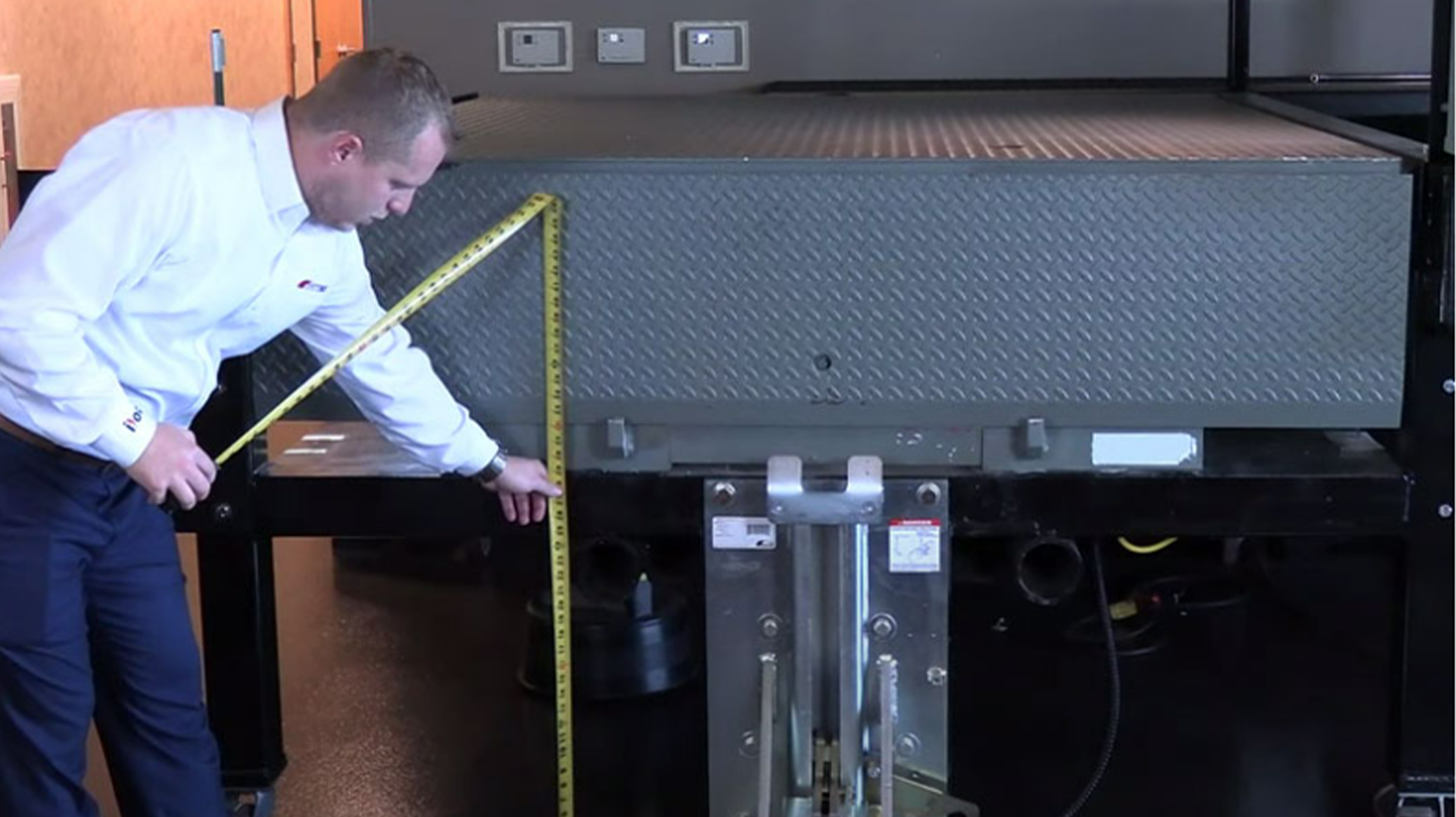

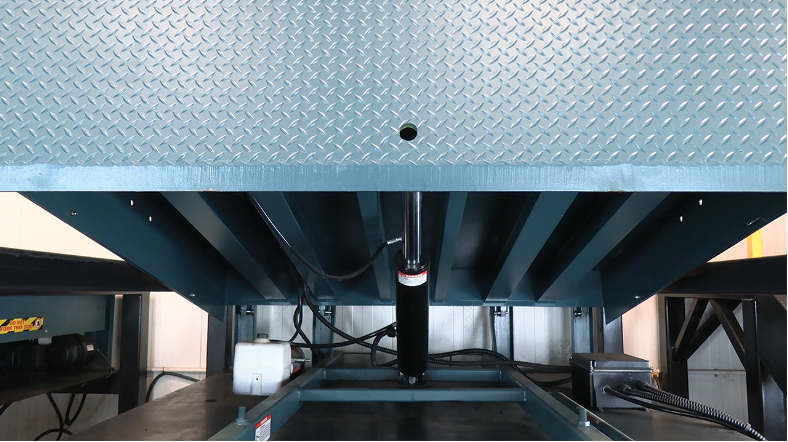

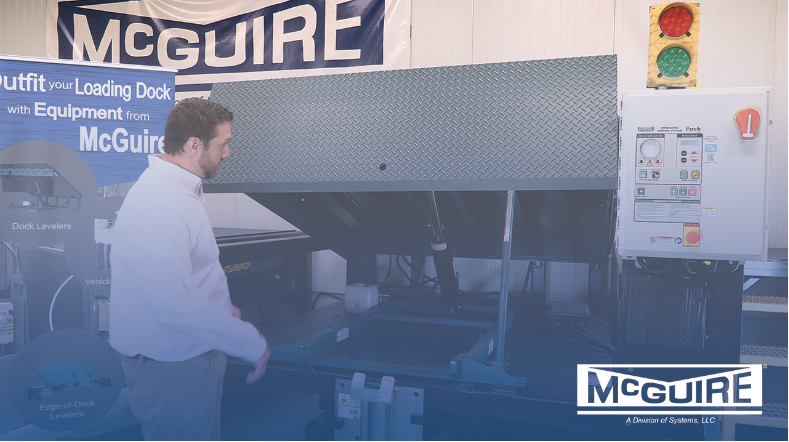

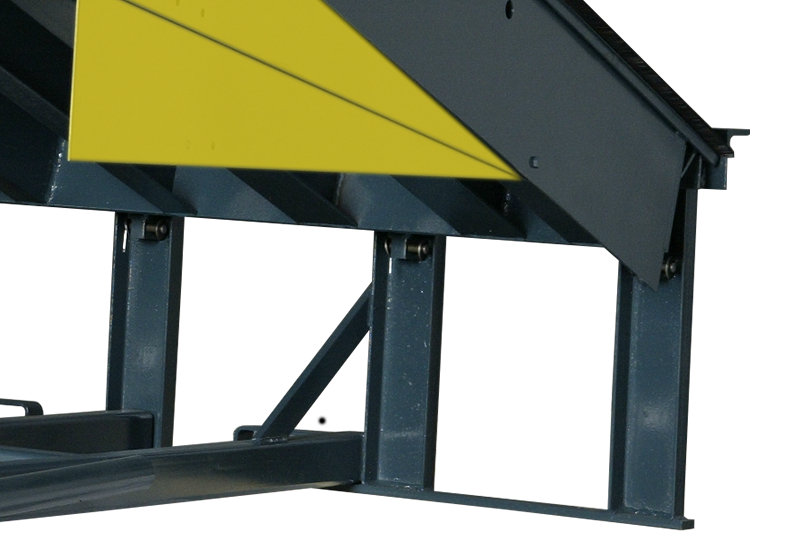

Structural Steel Frame
While some manufacturers use flat stock or other light duty material, McGuire uses 4" structural "C" channel on all pit levelers.
-

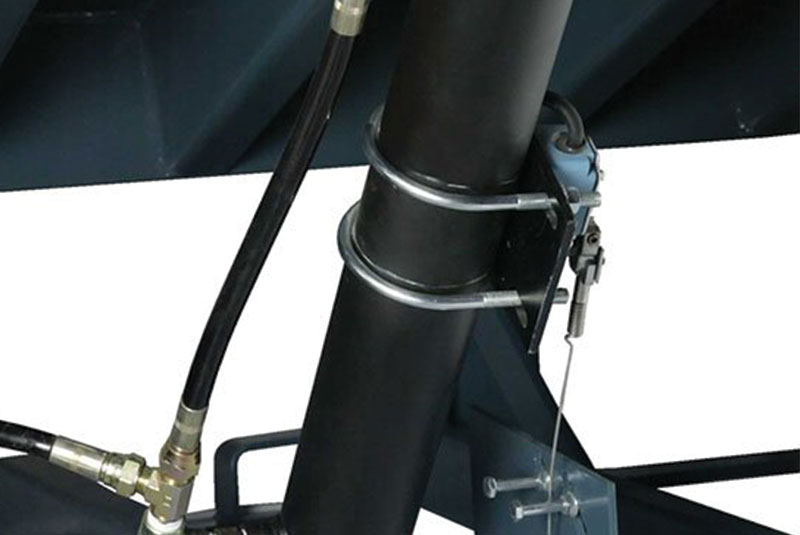

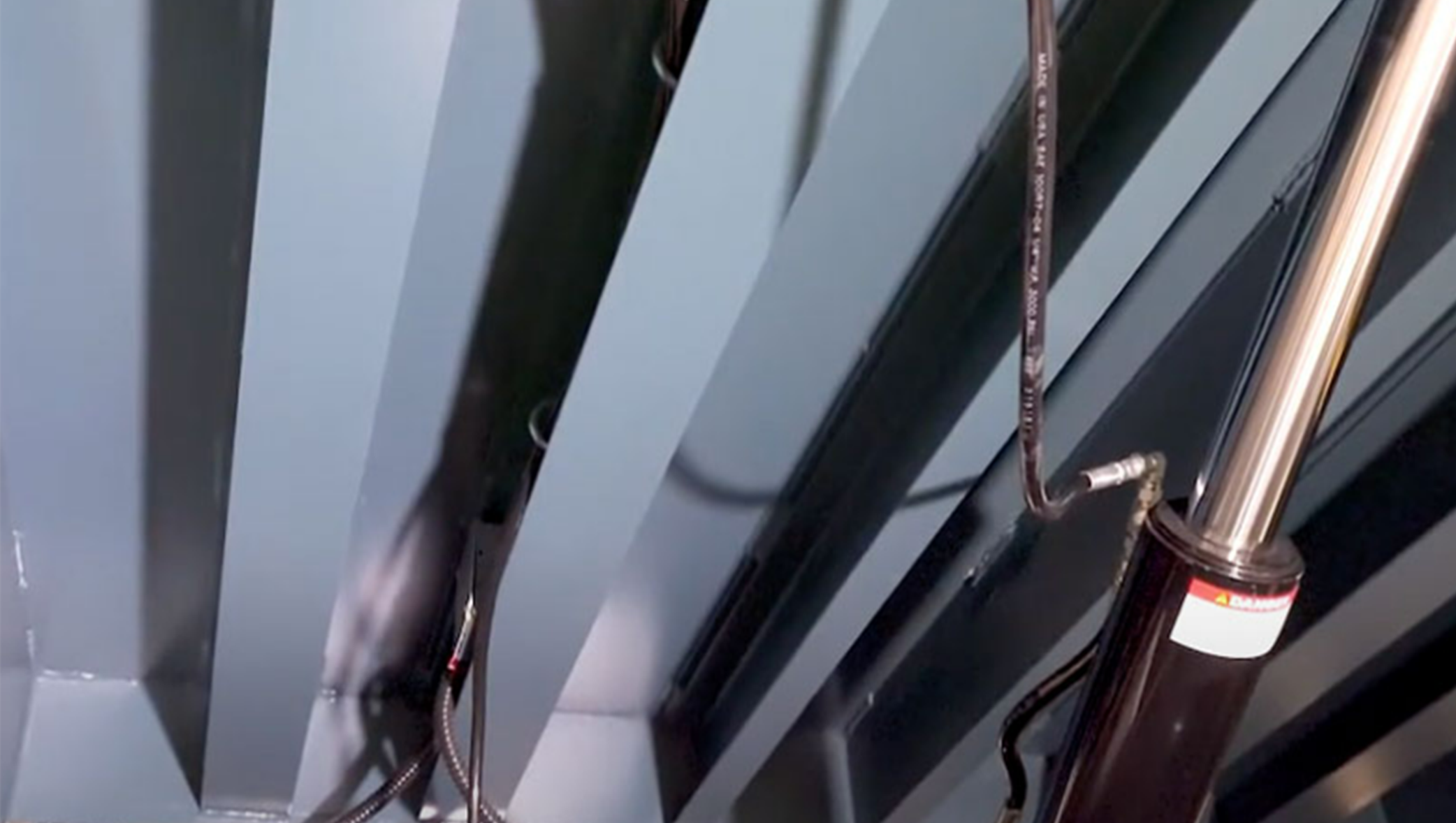

Regenerative Hydraulic System
Dual port cylinders allow hydraulic fluid to travel in both directions, creating a faster lift. Dual ports are found on both lift and lip cylinders.
-

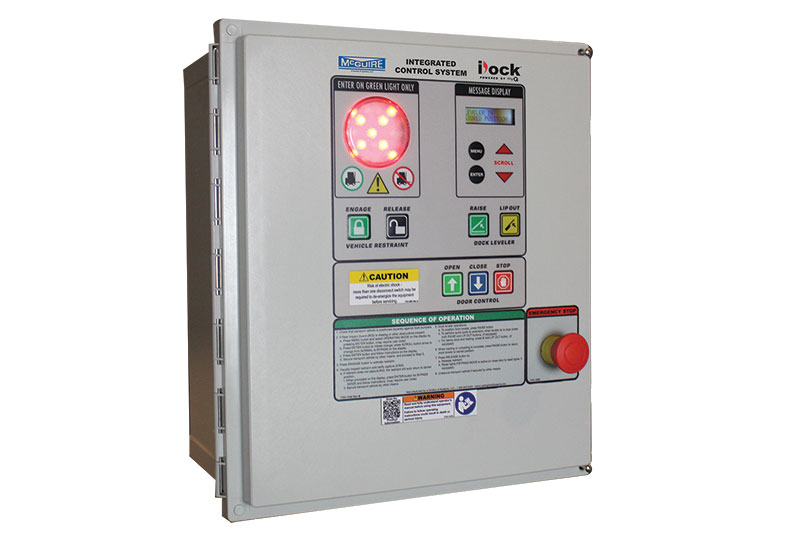

Integrated Control Panels
McGuire Integrated Control Panels can combine all your controls in one easy to operate, clean and simple wall configuration. We Provide what you need from our own UL approved shop. Improve your dock safety and productivity with an Integrated Panel from McGuire.
-

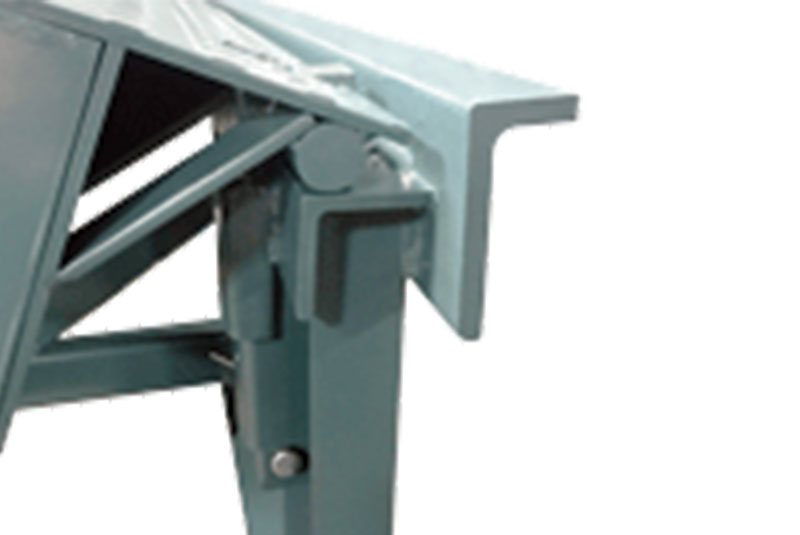

Full Width Rear Hinge
McGuire is the only dock leveler manufacturer that employs a full width rear hinge mounted in compresssion, using a 1" diameter solid steel rod. So indestructable, it carries a lifetime warranty.
-

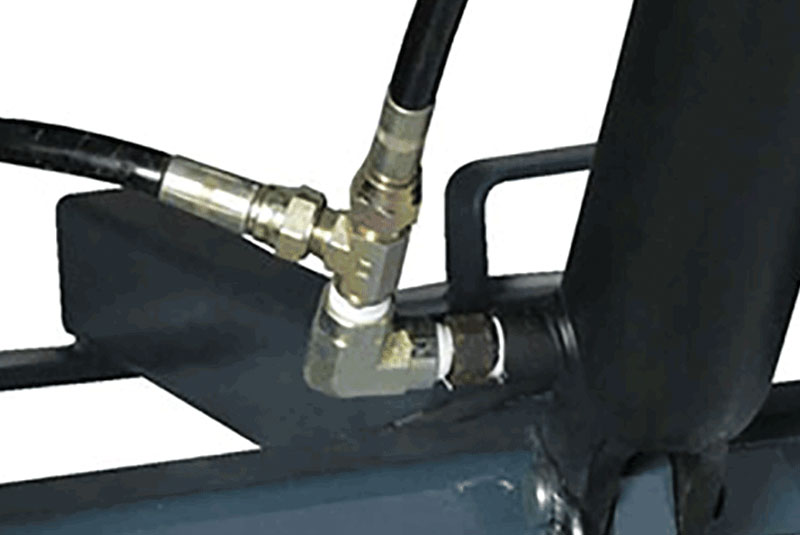

Velocity Fuse Protection
McGuire uses a tamperproof velocity safety stop in all of our lift cylinders for safety in case of a sudden trailer departure.
-

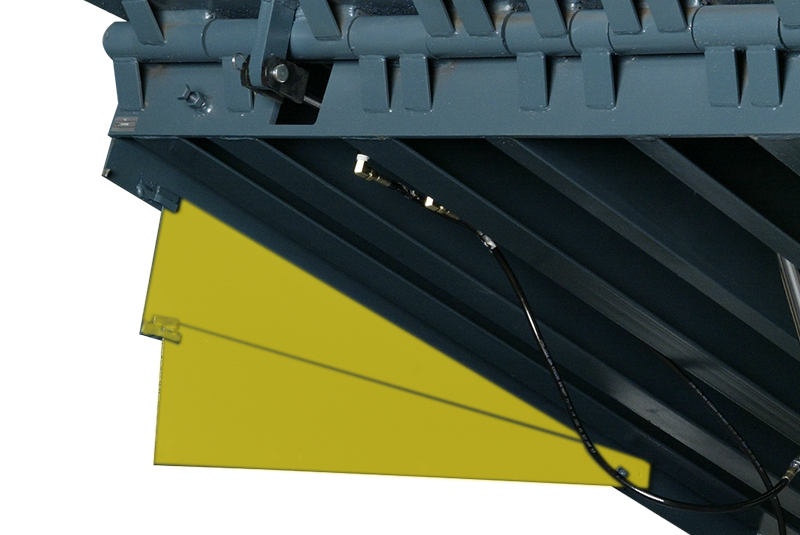

Full Range Telescoping Toe Guards
Provides top safety to your employees at the dock while operating any McGuire hydraulic or air operated dock leveler. Assures any dock leveler with a downward bias inherent in operation has enhanced safety closures at the edges to protect your employees.
-

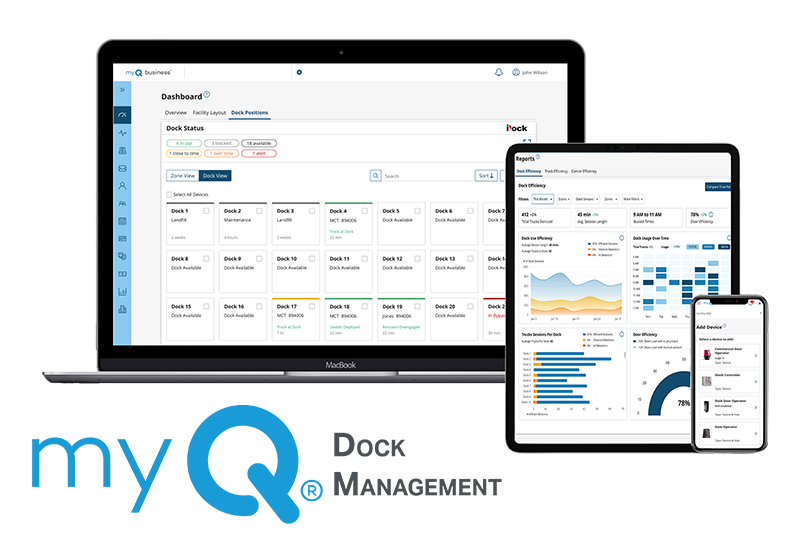

Connect Online
Option to connect to myQ Dock Management and view the leveler activity online.
